The Texture Rotate Effect lets you use any of the 5 Texture or Noise slots in the Texture Pane and use that Texture, rotated, in your painting. Since you can use multiple Effects at the same time, you can use multiple Texture Effects with different Textures (up to 5). Textures are either Noise or a Photo from your Photo Album.|
The Texture Rotate Effect is identical to the Texture Effect with the addition of a rotation added to the Texture.
Note that the Options Pane for Rotate offers the ability to change the X and Y rotation independently. If the two values are the same, it is a normal rotate. If the two values are not the same, you get a rotation with a sheer.
If you enable the Fit To Brush Option you will paint with the Texture Rotate sized to your brush.

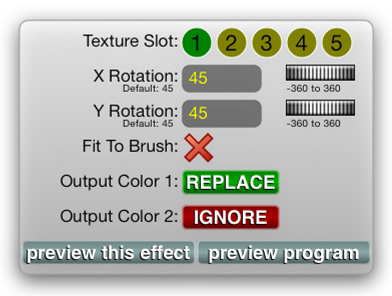

The Texture Rotate Effect has the following Options Pane:|
|Texture Slot:||Use this to select the Texture Slot you want to user from the Texture Pane. The dark green circle is the currently selected Texture, the lighter yellowish circles are not selected. Remember that any Texture slot can contain either a Photo from your Photo Album, or Noise. The Texture slot you pick does not have to have a Texture in it yet - however, if you try to paint you will get a warning that you need to load a missing Texture.|
|X Rotation:||This is the number of degrees to rotate the X axis (-360 to 360). If this matches the Y Rotation, it is a normal rotate, otherwise it is a sheer.
|Y Rotation:||This is the number of degrees to rotate the Y axis (-360 to 360). If this matches the X Rotation, it is a normal rotate, otherwise it is a sheer.
|Fit To Brush:||If set to a Red X the Effect spans the screen such that as you paint you reveal the Effect. When set to a Green Check Mark the Effect is sized to the brush such that as you paint the entire Effect is within the brush itself.|
|Output Color 1:||By default this is set to REPLACE which means that the set color will be output to Color 1. You can change this as explained in Options Pane Color Mixers.|
|Output Color 2:||By default this is set to IGNORE which means that the Color 2 will be ignored (the original Color 2 will be kept). You can change this as explained in Options Pane Color Mixers.|

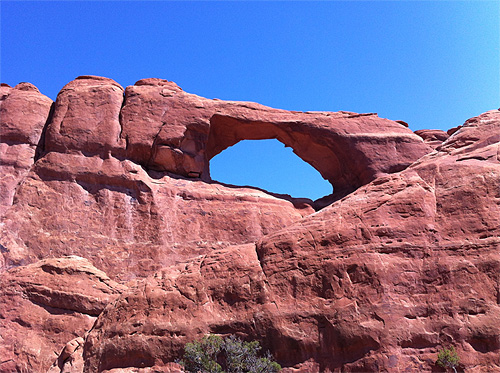

To show the Texture Rotate Effect we again have loaded our Arches National Park photo into our Texture Pane slot 1:|

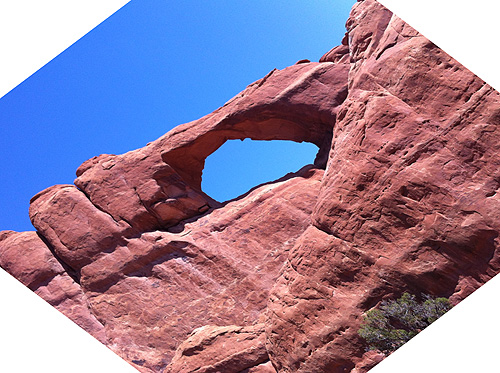

The image below shows the default Rotate settings of 45 degrees:

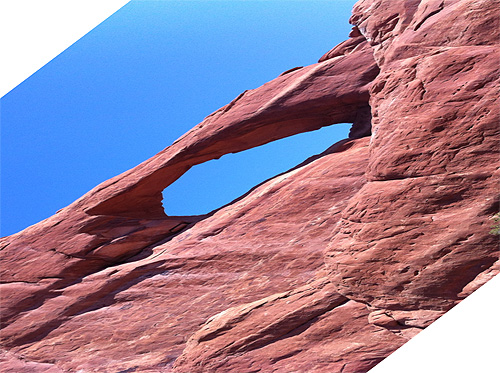

In this next image we have set X rotate to 90 degrees and Y rotate to 45 to show how it sheers:
