      Effect:Neural Network
      Category:Procedural Sources
      Speed:Medium

      Description: The Neural Network Effect creates a web of connected areas.

      Neural Network uses Color 1 for the net (web) color and Color 2 for the hole color.

      The Neural Network Effect is time sensitive and can use a Clock or Clock Modifier (available in the Neural Network Options) to modify the Effect over time.

      If you enable the Fit To Brush Option you will paint with the Neural Network Effect sized to your brush.

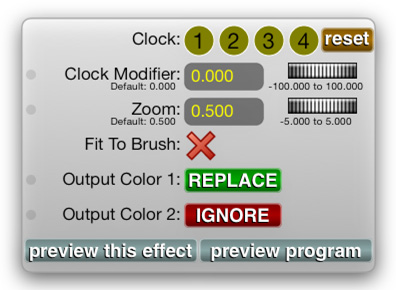

      Options: The Neural Network Effect has the following Options Pane:

      Clock:This Effect can change over time. This control lets you select which of the four Clocks to use (Clocks are assigned in the Brush Pane). Any Green Colored Clock is the one currently in use. Tap the reset button and a Pop Up will appear that lets you reset any of the four Clocks to their initial value. Yellow colored clocks are not in use. Note that you can turn Clocks off by tapping a Green Clock turning all of them yellow.
      Clock Modifier:This value is added to the current Clock. You can use this to change where in time this Effect is, relative to the Clock (this allows different Effects to use the same Clock with different offsets).
      Zoom:This controls the scale of the Effect.
      Fit To Brush:If set to a Red X the Effect spans the screen such that as you paint you reveal the Effect. When set to a Green Check Mark the Effect is sized to the brush such that as you paint the entire Effect is within the brush itself.
      Output Color 1:By default this is set to REPLACE which means that the set color will be output to Color 1. You can change this as explained in Options Pane Color Mixers.
      Output Color 2:By default this is set to IGNORE which means that the Color 2 will be ignored (the original Color 2 will be kept). You can change this as explained in Options Pane Color Mixers.

      Example: The following image shows the Neural Network with its default settings and Color 1 set to white and Color 2 set to black:

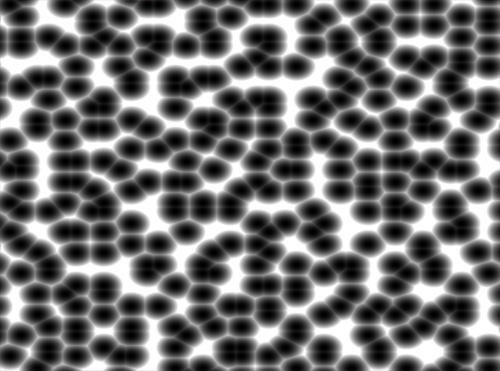

      In this second image we have set the Zoom to a lower value, resulting in a more densely packed network:

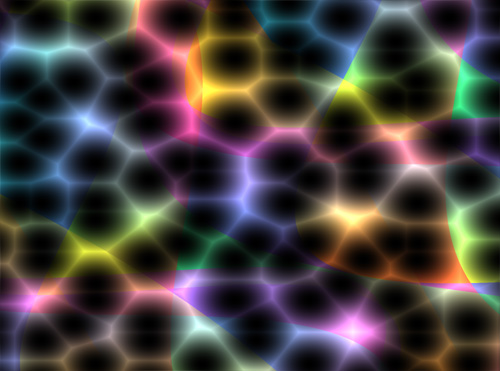

      Here we combine the Neural Network effect with the Colorful Curves Effect. Colorful Curves has Output Color 1 set to Multiply:
