      Effect:Color Exclusion
      Category:Math and Logic
      Speed:Fast

      Description: The Color Exclusion Effect produces a traditional photographic Exclusion effect.

      The Color Exclusion Effect is similar to the Color Difference Effect but with a lower contrast output.

      Exclusion adds Color 1 with Color 2 and then takes that result and subtracts it from Color 1 multiplied with Color 2 multiplied by 2.

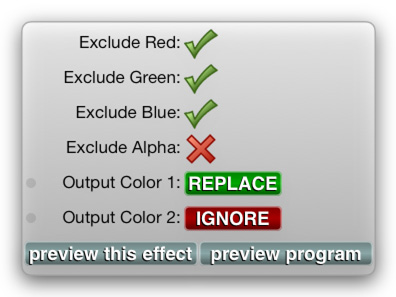

      Options: The Color Exclusion Effect has the following Options Pane:

      Exclude Red:If set to a Red X, the Red Channel is not Excluded. If set to a Green Check Mark the Red Channel of Color 2 is Excluded to the Red Channel of Color 1.
      Exclude Green:If set to a Red X, the Green Channel is not Excluded. If set to a Green Check Mark the Green Channel of Color 2 is Excluded to the Green Channel of Color 1.
      Exclude Blue:If set to a Red X, the Blue Channel is not Excluded. If set to a Green Check Mark the Blue Channel of Color 2 is Excluded to the Blue Channel of Color 1.
      Exclude Alpha:If set to a Red X, the Alpha Channel is not Excluded. If set to a Green Check Mark the Alpha Channel of Color 2 is Excluded to the Alpha Channel of Color 1.
      Output Color 1:By default this is set to REPLACE which means that the set color will be output to Color 1. You can change this as explained in Options Pane Color Mixers.
      Output Color 2:By default this is set to IGNORE which means that the Color 2 will be ignored (the original Color 2 will be kept). You can change this as explained in Options Pane Color Mixers.

      Example: The following images show the Color Exclusion Effect.

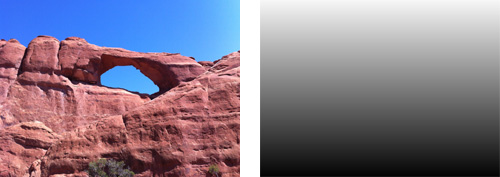

      In this example we combine three Effects. In Slot 1 we have a Texture Effect with our Arches National Park photo loaded. In Slot 2 we have a 2-Color Gradient with default values but Output Color 1 set to Ignore and Output Color 2 set to Replace:

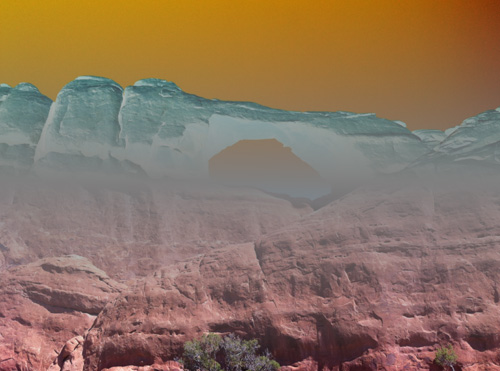

      In Slot 3 we place our Color Exclusion with default values. This is the result:
