      Effect:Color Hard Light
      Category:Math and Logic
      Speed:Fast

      Description: The Color Hard Light Effect produces a traditional photographic Hard Light effect.

      Hard Light combines the Color Multiply Effect and Color Screen Effect. This produces the same result as the Overlay Effect, but with Color 1 and Color 2 swapped.

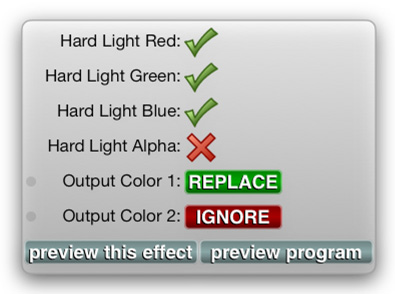

      Options: The Hard Light Effect has the following Options Pane:

      Hard Light Red:If set to a Red X, the Red Channel is not Hard Lit. If set to a Green Check Mark the Red Channel of Color 2 is Hard Lit to the Red Channel of Color 1.
      Hard Light Green:If set to a Red X, the Green Channel is not Hard Lit. If set to a Green Check Mark the Green Channel of Color 2 is Hard Lit to the Green Channel of Color 1.
      Hard Light Blue:If set to a Red X, the Blue Channel is not Hard Lit. If set to a Green Check Mark the Blue Channel of Color 2 is Hard Lit to the Blue Channel of Color 1.
      Hard Light Alpha:If set to a Red X, the Alpha Channel is not Hard Lit. If set to a Green Check Mark the Alpha Channel of Color 2 is Hard Lit to the Alpha Channel of Color 1.
      Output Color 1:By default this is set to REPLACE which means that the set color will be output to Color 1. You can change this as explained in Options Pane Color Mixers.
      Output Color 2:By default this is set to IGNORE which means that the Color 2 will be ignored (the original Color 2 will be kept). You can change this as explained in Options Pane Color Mixers.

      Example: The following examples show the Color Hard Light Effect.

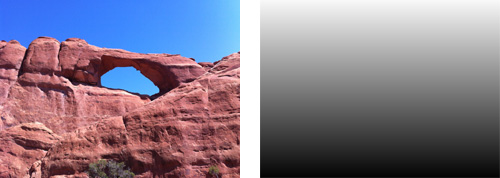

      In this example we combine three Effects. In Slot 1 we have a Texture Effect with our Arches National Park photo loaded. In Slot 2 we have a 2-Color Gradient with default values but Output Color 1 set to Ignore and Output Color 2 set to Replace:

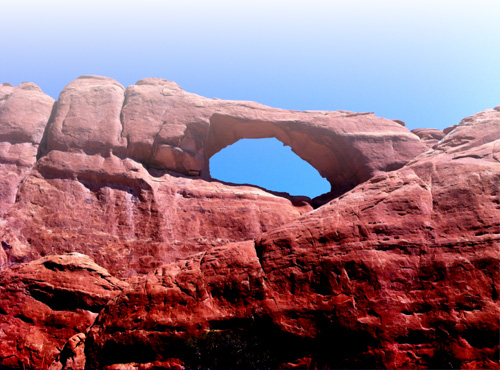

      In Slot 3 we place our Color Hard Light with default values. This is the result:

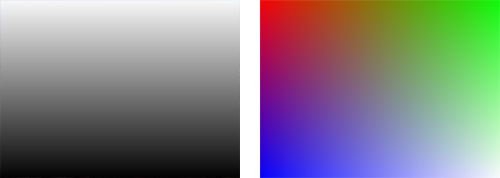

      In the next example we again combine three Effects. In Slot 1 we have a 2-Color Gradient Effect with default values. In Slot 2 we have a 4-Color Gradient with default values but Output Color 1 set to Ignore and Output Color 2 set to Replace:

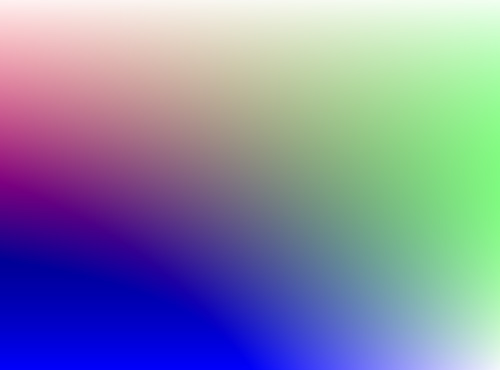

      In Slot 3 we place our Color Hard Light with default values. This is the result:
